Breaking Through the Spatial and Dynamic Limits of Five-Axis Machining
In aerospace impellers, medical implant bone plates, precision semiconductor components, precision optical molds, and composite-surface machining, spatial interference and transmission backlash and wear have long been physical bottlenecks for five-axis machining. Complex geometries and micron-level surface accuracy require not only exceptional dynamic angular acceleration, but also the elimination of the substantial spatial interference associated with conventional orthogonal cradle-type rotary tables.

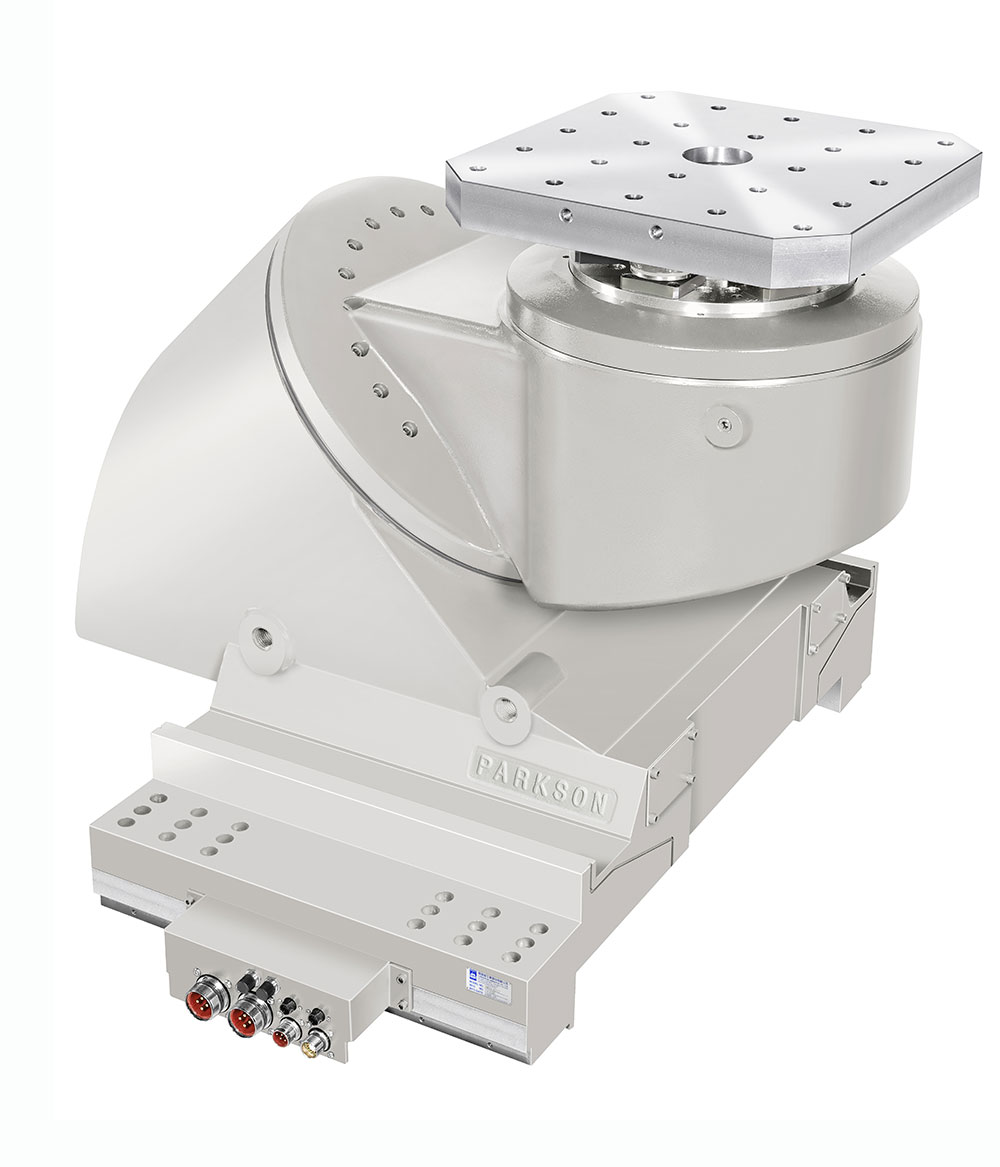

Drawing on extensive expertise in multi-axis indexing tables and precision machining integration, PARKSON (Parkson-Wu Industrial Co., Ltd.) introduces the 45° non-orthogonal, dual-DD direct-drive five-axis rotary table. Designed for high-end vertical and horizontal machining centers and dedicated automated five-axis machines, it brings rigid construction, interference-avoiding geometry, and zero-backlash dynamic performance to a new level.
What Is a 45° Non-Orthogonal Five-Axis Rotary Table?
A 45° non-orthogonal five-axis rotary table positions its tilting axis at approximately 45° rather than using the spatial relationship found in a conventional orthogonal cradle structure.
The purpose of this axis arrangement is not simply to change the table's appearance. By repositioning the relationship between the rotation center, workpiece, and spindle, it improves tool accessibility and use of the machine's working space during five-axis machining.
For applications involving deep-cavity machining, multi-side machining, and simultaneous machining of complex surfaces, a non-orthogonal axis arrangement is one solution for advanced five-axis machine design.
Five Technical Advantages of the 45° Non-Orthogonal Dual-DD Direct-Drive Five-Axis Rotary Table
01 | 45° Non-Orthogonal Axis Design: Optimized Workspace and Tool Accessibility
Compared with a conventional orthogonal cradle structure, the 45° non-orthogonal arrangement reconfigures the geometry of rotary motion, making more effective use of the machine's internal space as the table tilts.
- Improved interference clearance: The tilted-axis arrangement can improve the spatial relationship among the spindle, tool, workpiece, fixture, and table, reducing the risk of interference in complex machining orientations.
- Greater tool accessibility: Deep cavities, undercuts, and complex surfaces can be approached from a wider range of directions, helping expand the machine's five-axis machining envelope.
- Supports shorter tools: When the tool can approach the machining area more directly, tool overhang may be shortened, improving process stability and vibration resistance.
02 | Dual-DD Direct-Drive Technology: High Dynamics and Low Transmission Error
Both the tilting and rotary axes use direct-drive (DD) technology, with motors integrated directly into the rotary axes. This reduces the mechanical transmission components found in conventional gear, worm, and other drive systems.
- Direct torque transmission: The direct-drive architecture shortens the power transmission path so torque acts more directly on the rotary axis, improving multi-axis motion response.
- Fewer sources of mechanical backlash: Fewer meshing components reduce the effects of gear clearance, wear, and transmission error on positioning performance.
- Improved dynamic response: DD direct drive provides rapid acceleration and deceleration, making it suitable for high-speed five-axis contouring and frequent orientation changes. It can reduce non-cutting travel time and improve cycle time.
03 | High-Resolution Angular Feedback: Improved Five-Axis Positioning Control
The rotary axes use high-resolution angle encoders or circular optical scales to provide position feedback for high-precision closed-loop control.
- High-resolution angle measurement: Directly measures rotary-axis position to provide the feedback required for precise five-axis motion control.
- Closed-loop control: Feedback from the actual axis position allows motion errors to be corrected, helping improve positioning and repeatability during simultaneous five-axis machining.
- Supports precision machining: Suitable for aerospace, precision molds, medical devices, optical components, and other applications with demanding angular-positioning requirements.
04 | High-Rigidity Clamping: Balancing Five-Axis Contouring and Heavy Cutting
Five-axis equipment is used not only for high-speed simultaneous machining, but also for 3+2 positioning and heavy cutting. The rotary table must therefore provide both dynamic performance and adequate structural support once positioned.
PARKSON uses a high-rigidity, full-circumference hydraulic clamping mechanism to hold the table securely during positioning operations and reduce the effect of cutting loads on table stability.
This architecture supports simultaneous five-axis machining, 3+2 positioning, heavy cutting, complex-surface machining, and high-accuracy positioning. Actual clamping torque and load capacity are configured according to product specifications and application requirements.
05 | Thermal Management and Protection: Stability During Extended Machining
During high-speed, continuous multi-axis operation, the drive motors and mechanical structure generate heat. Thermal stability over long operating periods is therefore as important as initial accuracy in advanced five-axis machining.
- Circulating liquid cooling: DD direct-drive motors can be equipped with circulating stator cooling to help control heat generated during continuous operation.
- Reduced thermal-deformation effects: Thermal-source management and structural design help reduce accuracy changes caused by heat transfer to the main load-bearing structure and worktable.
Product Specifications
| Item | Specifications |
|---|---|
| Table Size | 500 × 500 mm (supports zero-point quick-change system) |
| Axis Configuration | 45° non-orthogonal dual-axis mechanism (tilting and rotary axes) |
| Tilting / Rotary Axis Travel | Tilting axis: 0°–180° (vertical-to-horizontal inversion supported) / table: continuous 360° rotation |
| Drive System | Dual direct-drive torque motors |
| Backlash Elimination | Direct drive, no mechanical gear backlash |
| Position Feedback | Absolute high-resolution circular optical scale |
| Clamping System | High-rigidity full-circumference hydraulic brake |
| Cooling and Protection | Circulating stator water-cooling jacket / positive-pressure air curtain (IP67) |
| Applicable Machines | High-speed horizontal machining centers, multi-axis machine tools, and dedicated precision milling and engraving machines |
Best-Fit Applications
- Aerospace and defense precision components: Multi-side machining of closed impellers, blisk turbine rotors, and precision aircraft structures.
- Advanced medical and biotechnology devices: Titanium artificial joints, implantable bone plates, complex dental components, and minimally invasive surgical instruments.
- Precision optics and micro-molds: Multi-surface optical lens molds, precision semiconductor packaging molds, and parts with high-finish undercut features.
PARKSON Industrial Co., Ltd.: Your Partner for Exceptional Five-Axis Rotary Tables
For decades, PARKSON has focused on precision CNC rotary tables, multi-axis indexing tables, and advanced five-axis direct-drive technology. Our work spans axis-topology geometry, direct-drive torque-motor dynamics, full closed-loop feedback, high-rigidity clamping structures, and thermally balanced cooling. We continue to advance the performance of core machine-tool components.
The PARKSON 45° non-orthogonal dual-DD direct-drive five-axis rotary table provides advanced five-axis equipment with a broad machining envelope. It combines high dynamic response with rigidity for heavy cutting, helping manufacturers compete in high-precision manufacturing worldwide.
Frequently Asked Questions
Q1: What is a 45° non-orthogonal five-axis rotary table, and how does it differ from a conventional orthogonal cradle table?
A: It positions the tilting rotary axis at an angle of approximately 45°, rather than using the vertical/horizontal A/C-axis geometry of a conventional orthogonal cradle. This changes the table's spatial rotation envelope and can improve clearance among the machine spindle, fixture, and tool. This increases tool accessibility during deep-cavity machining.
Q2: What practical machining benefits does a 45° non-orthogonal axis arrangement provide?
A: Its principal benefit is improved clearance in areas where conventional five-axis layouts may interfere. During deep-cavity, undercut, and multi-side machining, the tool can approach the workpiece more smoothly. Shorter, more rigid tools may also be used, helping reduce chatter and improve surface finish and tool life.
Q3: What is Dual-DD technology, and what transmission advantages does it offer?
A: Dual DD means that both the tilting and rotary axes use direct-drive torque motors. With no intermediate gears or worm drives, the design eliminates mechanical backlash and long-term wear in those transmission components while providing rapid acceleration and response, improving contouring performance in high-speed simultaneous five-axis machining.
Q4: Which industries are suited to a 45° non-orthogonal five-axis rotary table?
A: Applications include aerospace impellers and blades, precision defense components, medical implants such as artificial joints and bone plates, precision optical molds, semiconductor equipment vacuum chambers, and complex freeform-surface or multi-side machining.
Q5: Which CNC machine tools can work with the PARKSON 45° non-orthogonal five-axis rotary table?
A: PARKSON offers modular, highly customizable mounting interfaces for integration with major domestic and international vertical machining centers (VMCs), horizontal machining centers (HMCs), mill-turn machines, and dedicated multi-axis machining centers.
