In the fields of large-scale aerospace, wind power, railway transportation, and heavy mold processing, "large size and heavy load" and "high precision" are often a difficult contradiction to achieve simultaneously. When machining large workpieces weighing tens of tons, equipment not only needs powerful drive capabilities but also must balance high precision and long-term operational stability. The dual servo drive transmission mechanism integrates high-rigidity design and synchronous drive technology, providing more abundant torque output and more precise positioning performance.

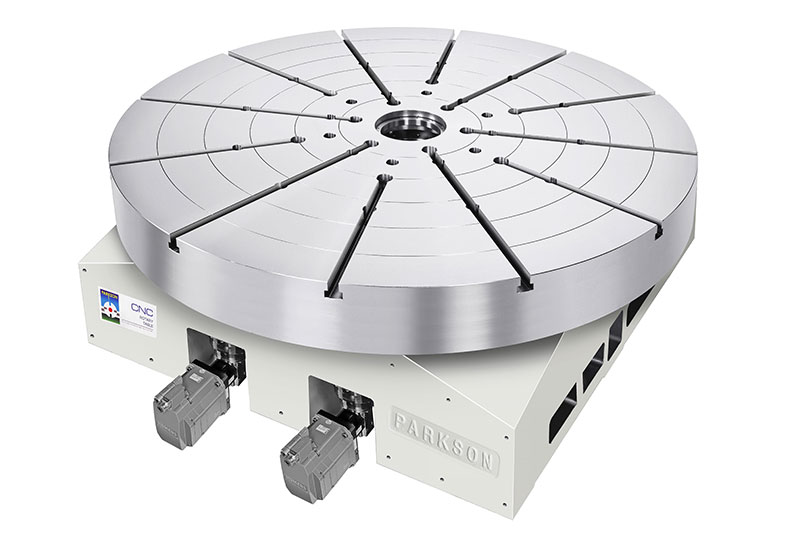

PARKSON (PARKSON WU INDUSTRIAL CO., LTD.), leveraging decades of experience in the R&D and manufacturing of large rotary tables, has launched a groundbreaking 2000mm dual-drive ultra-heavy-duty CNC precision indexing table. Specifically designed for large floor-type milling machines, gantry milling machines, and heavy-duty automated equipment, it elevates rigidity, load-bearing capacity, and precise dynamic response to a new level!
Key Features & Technical Advantages
1. Extra-Large Table Surface & Exceptional Load Capacity
- Φ2000 large diameter disc: It adopts a high-rigidity cast base and a high-tension disc design, with radial T-slots on the surface, providing excellent clamping flexibility and strong support.
- 20,000 kg (20 tons) super load capacity: The internal high-rigidity, high-load bearing configuration can easily withstand heavy cutting and eccentric loads of large castings, large molds, or extra-long workpieces.
2. Dual Servo Motors + Dual Precision Reducers for Backlash Elimination (Dual-Drive & Zero Backlash)
- Dual-axis synchronized power drive: Equipped with dual servo motors and dual precision reduction mechanisms, the two power sources operate simultaneously to provide increased torque output and enhanced operating stability.
- Electronic/mechanical backlash suppression: Through dual-motor preloading and reverse backlash compensation control, backlash between the drive rack or gears can be effectively eliminated, achieving high-resolution micro-step positioning and zero backlash during bidirectional rotation.
3. High-Rigidity Braking & High-Precision Positioning
- Reinforced clamping brake system: Equipped with a high-pressure hydraulic clamping mechanism that provides extremely high locking torque, ensuring that the table remains firmly in position during heavy cutting while improving tool life and machined surface finish.
- High-resolution feedback: Can be equipped with a high-precision rotary encoder to maintain repeatable positioning accuracy at the arc-second level, even under long-term heavy loads and dynamic operating conditions.
Product Specifications
| Key Item | Specification |
|---|---|
| Table Diameter | Φ2000 / 2000 × 2000 |
| Max. Work Load | 20,000 kg |
| Drive System | Dual Servo Motors |
| Reduction System | Dual Precision Reducers |
| Backlash Elimination | Dual-drive electronic/mechanical backlash elimination mechanism |
| Applicable Model | Large gantry milling machines, floor-type horizontal milling machines, special-purpose machining centers, etc. |
Ideal Applications
- Wind Power & Energy Equipment: Precision machining of hubs, large gearbox housings, and wind turbine bases.
- Aerospace & Defense: Indexing machining of large structural components, engine ring components, and fuselage fixtures.
- Large Molds & Heavy Machinery: Large automotive sheet-metal stamping dies, injection molding machine bases, and large valve and pump bodies.
PARKSON (PARKSON WU INDUSTRIAL CO., LTD.) has always upheld the principles of “Precision, Stability, and Durability.” This 2000 mm Dual-Drive Ultra-Large Precision Indexing Table is not only a solid foundation for heavy-duty machining, but also an ideal choice for enhancing production-line value and achieving highly efficient manufacturing capacity!
